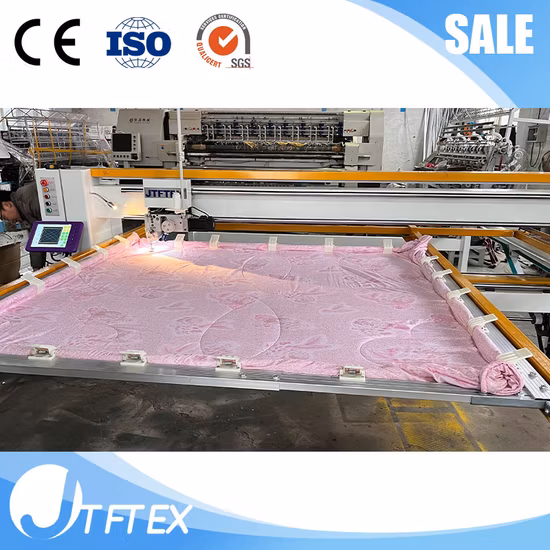

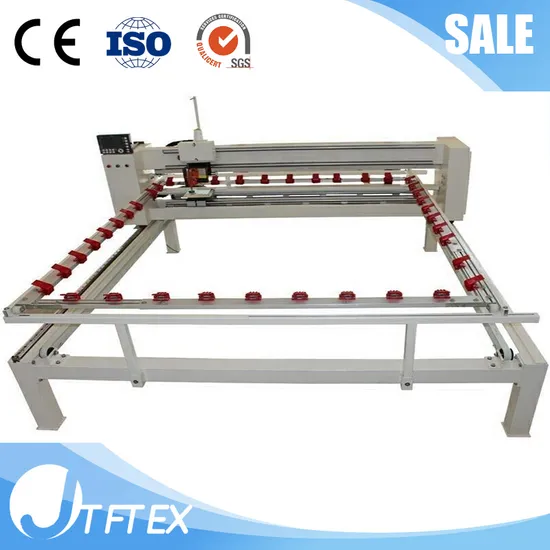

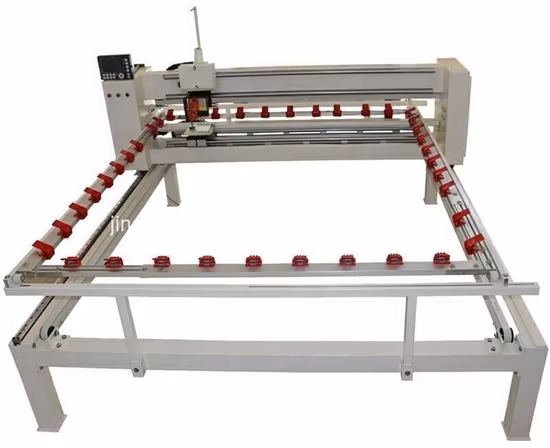

Automatic Computerized Single Multi Needle Shuttle Textile Stitching Quilting Machine

Overview

Basic Info.

Model NO.	JT-24B
Condition	New
Installed Infared Facility	Safety Factor
Automization Lubrication System	Computerized Frame
Application	Quilts, Mattress, Bedsheet, Sponge and Leather
Sewing -Thick	1500G/M2
Servo Motor	Linear Guide Rail
Home Textile Machine	Adjustable and Extendable Quilting Frames
Power	220V/50Hz/1.5kw
Fixing Head	Easily and Conveniently
Max Quilting Density	2100
Stitch Length	2-6mm
Diemension	4030X4060X1500mm/ 4100X4140X1500
Max Speed	3000
Max. Quilting Size	2300X2500mm/2600X2800mm
Stitch	Lock Stitch
Material Size	2550X2750mm/ 2900X3100mm
Transport Package	Wooden Package
Specification	weight: 1800-2200kgs
Trademark	JTFTEX
Origin	China
HS Code	8452219000
Production Capacity	1000set/Year

Packaging & Delivery

Package Size 3600.00cm * 900.00cm * 1400.00cm Package Gross Weight 1100.000kg

Product Description

Product Description

Main Features:
* 1:1 design, fixed quilting frame, sewing head and saddletree move in X/Y direction to improve quilting precision.*Maximum speed can up to 3000rpm, working speed is 2700rpm.*Four servo motors provide powerful and accurate driving force.*Automatic thread trimmer system, no need manu cut thread.*Thread breakage detection device can stop the machine once thread is broken, machine can continue quilting at the stopping point after re-threading.*Adjustable and extendable aluminum quilting frames, able to change the frame size according to quilting required.

Product Parameters

Material size(MM)	2550X2750MM	2900X3100MM
Max Quilting Size	2300x2500MM	2600x2800MM
Stitch	Lock Stitch	Lock Stitch
Stitch Length	2-6	2-6
Max. Quilting Density	2100	2100
Max. Speed	3000	3000
Dimension(L*W*H)	4030X4060X1500MM	4100X4140X1500MM

Detailed Photos

Fixed Head
Taiwan linear guide rails make sewing headf and saddletree move quietly and smoothly, the space between needle and hook is more stable.Steel Bar MovingGerman lgus energy chains, rigid and durable with longer lifetimeSpecial Design for fixing head frame is changed easily and conveniently.V21 touch screen(10.4inch) computer control system.

Product Application

FAQ

Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.

Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery. Contact Us
