Basic Info.

Model NO.	HFJ-35F-2
G.W.	1820kg
Certificate	ISO9001, SGS
Working Style	Head Movable
Packing Type	Wooden Case/Plywood Case
Packing Size	4390mm*760mm*1770mm
Maximum Needle Drop Size	3000mm*3300mm
Maximum Quilt Size	3200mm*3500mm
Transport Package	Wooden Case
Specification	SGS, ISO9001: 2000
Trademark	Tian Yuan
Origin	Wuxi City, Jiangsu Province, China
HS Code	8447203000
Production Capacity	20 Sets/Month

Product Description

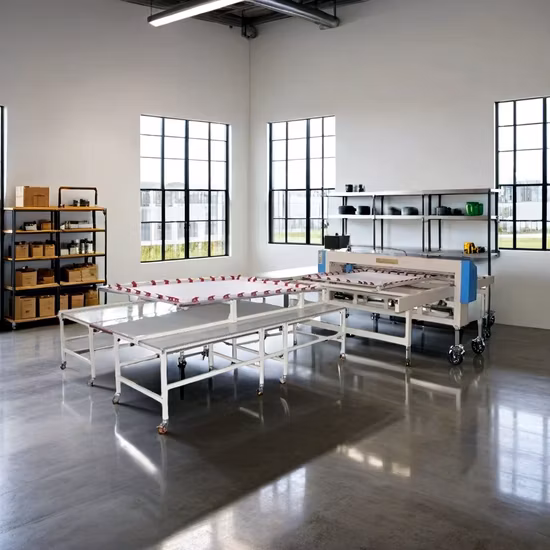

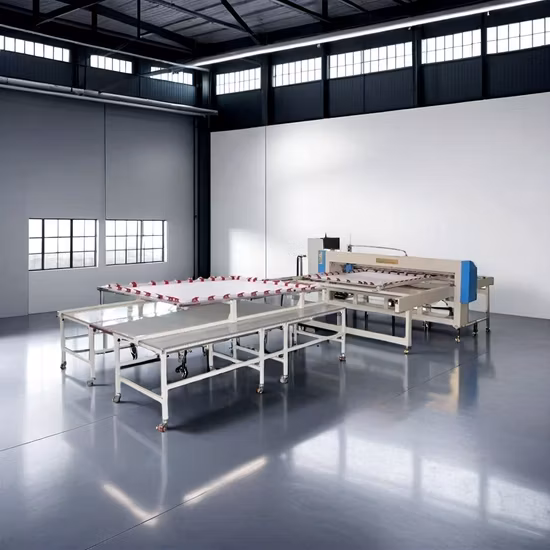

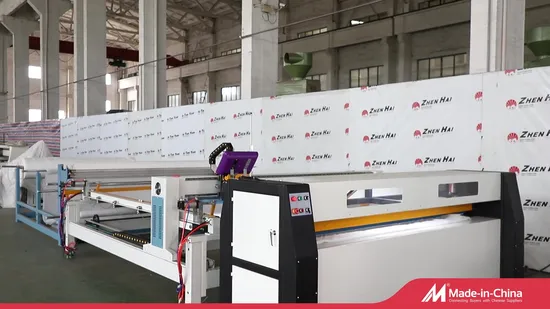

HFJ-F Series computerized quilting machine/mattress sewing machine/single head computerized quilting machine
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc. Can also quilt on sponge and leather.
Specifications:
1) 19"LCD with Chinese and English version. With 538 patterns already in the computer; Lockstitch, high precision
2) Power supply: 220V, 50Hz, 2kw
3) Automatically stops if thread breaks
4) Automatically stop against malfunction of computer, motor, and display
5) Pattern form: . DST DAT
6) USB interface
7) Single stitch length: 2-7mm
8) Needle type: DP5 18~22#
9) Max. Speed: 2200rpm
10) Max. Thickness: 1500 GSM
Specification B: HFJ-26F-2
Max quilt size: 2400 (W) × 2600 (L) mm
Max needle drop size: 2200 (W) × 2400 (L) mm
M/C dimension: 5000 (L) × 3420 (W) × 1780 (H) mm
Packing size: 3590 (L) × 760(W) × 1770 (H) mm
N. W.: 1300kg; G. W.: 1440kg
Specification C: HFJ-28F-2
Max quilt size: 2600 (W) × 2800 (L) mm
Max needle drop size: 2400 (W) × 2600 (L) mm
M/C dimension: 5200 (L) × 3700 (W) × 1780 (H) mm
Packing size: 3890 (L) × 760(W) × 1770 (H) mm
N. W.: 1440kg; G. W.: 1580kg
Specification D: HFJ-30F-2
Max quilt size: 2800 (W) × 3200 (L) mm
Max needle drop size: 2600 (W) × 3000 (L) mm
M/C dimension: 5600 (L) × 3900 (W) × 1780 (H) mm
Packing size: 4090 (L) × 760(W) × 1770 (H) mm
N. W.: 1520kg; G. W.: 1660kg
Specification E: HFJ-32F-2
Max quilt size: 3000 (W) × 3200 (L) mm
Max needle drop size: 2800 (W) × 3000 (L) mm
M/C dimension: 5600 (L) × 4100 (W) × 1780 (H) mm
Packing size: 4290 (L) × 760(W) × 1770 (H) mm
N. W.: 1600kg; G. W.: 1750kg
Specification F: HFJ-35F-2
Max quilt size: 3200 (W) × 3500 (L) mm
Max needle drop size: 3000 (W) × 3300 (L) mm
M/C dimension: 5900 (L) × 4220 (W) × 1780 (H) mm
Packing size: 4390 (L) × 760(W) × 1770 (H) mm
N. W.: 1700kg; G. W.: 1820kg

FAQ:
1, How to contact you?
You could contact us via TM, email or call us directly.
2, Are you factory or trading company?
More than 20 years ago we only had 1 factory but now we developed as a big united group with 2 factroies and 1 trading company. We produce machines by our 2 factories and export machines to different countries by our own trading company. We belonged to one boss: Mr. Chen who is a good and famous business man. Welcome to visit our factory.
3, How many countries have your products been exported to?
Until now our machines have been already exported to more than 100 countries.
4, Which payment term is accepted?
30% in advanced payment by T. T and 70% paid before shipment by T. T.
5, Can you make speicial voltage of the machines?
Yes, usually the machines are made with 380v, 50hz, 3 phases or 220v, 50hz, single phases. If you need different, please inform us and we customize.

	HFJ-26F-2	HFJ-28F-2	HFJ-30F-2	HFJ-32F-2	HFJ-35F-2
Max quilt size	2400×2600mm	2600×2800mm	2800×3200mm	3000×3200mm	3200×3500mm
Max needle drop size	2200×2400mm	2400×2600mm	2600×3000mm	2800×3000mm	3000×3300mm
Machine dimension	5000×3420×1780mm	5200×3700×1780mm	5600×3900×1780mm	5600×4100×1780mm	5900×4220×1780mm
Thread type	LOCK STITCH	LOCK STITCH	LOCK STITCH	LOCK STITCH	LOCK STITCH
Max quilting speed	2200rpm	2200rpm	2200rpm	2200rpm	2200rpm
Max quilting thickness	1500gsm	1500gsm	1500gsm	1500gsm	1500gsm
Stitch length adjustment	2-7mm	2-7mm	2-7mm	2-7mm	2-7mm
Needle model	DP5 18-22#	DP5 18-22#	DP5 18-22#	DP5 18-22#	DP5 18-22#
Pattern format	.DAT, .DST	.DAT, .DST	.DAT, .DST	.DAT, .DST	.DAT, .DST
USB	YES	YES	YES	YES	YES
Thread break detection	YES	YES	YES	YES	YES
Monitor	19" LCD	19" LCD	19" LCD	19" LCD	19" LCD
Voltage	220V/ 50HZ	220V/ 50HZ	220V/ 50HZ	220V/ 50HZ	220V/ 50HZ
Power	2.0KW	2.0KW	2.0KW	2.0KW	2.0KW
Packing dimension	3590×760×1770mm	3890×760×1770mm	4090×760×1770mm	4290×760×1770mm	4390×760×1770mm
Gross weight/Net weight	1440kg/1300kg	1580kg/1440kg	1660kg/1520kg	1750kg/1600kg	1820kg/1700kg
