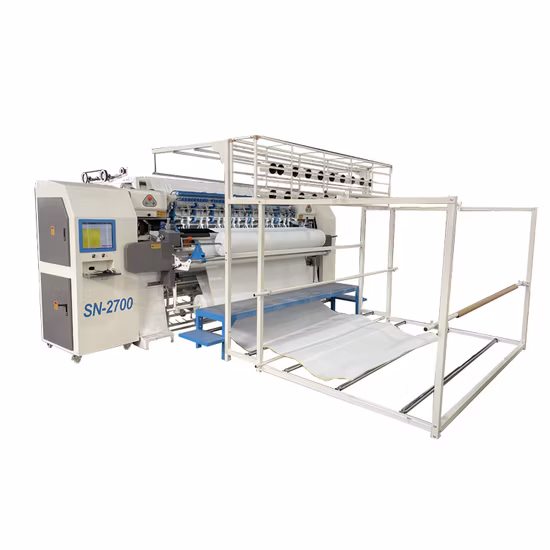

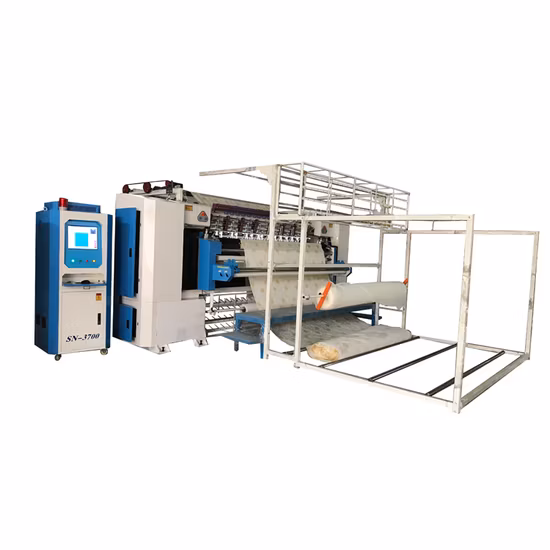

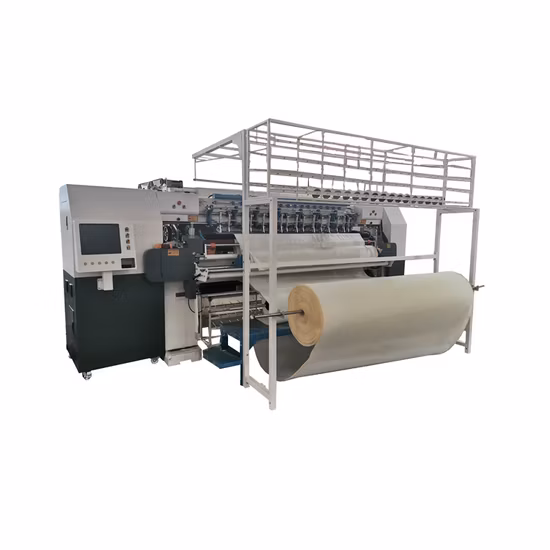

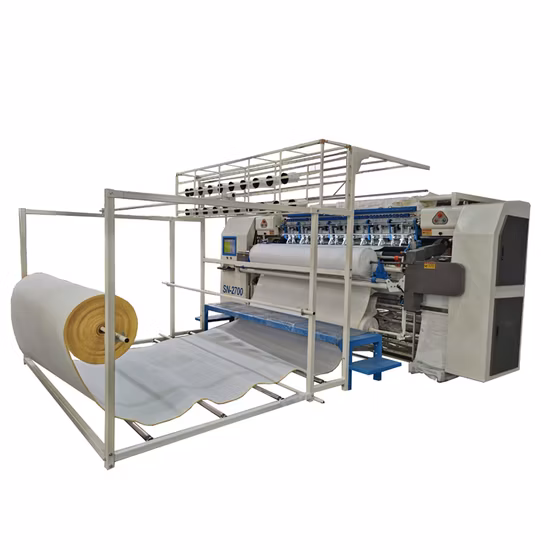

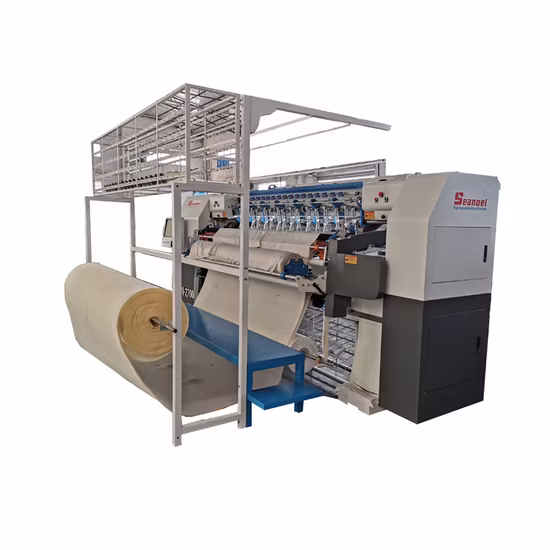

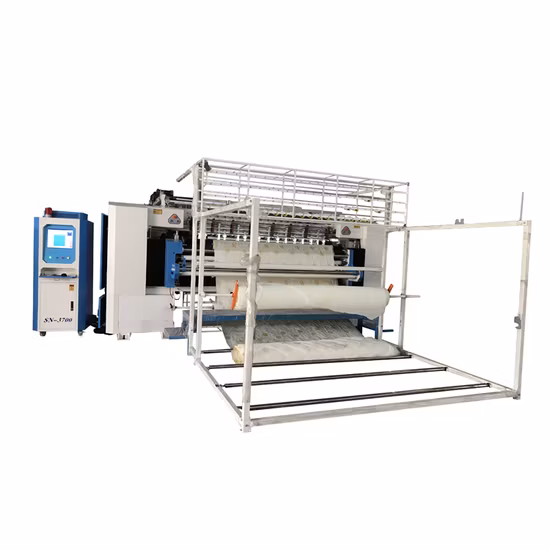

Computerized Chain Stitch Multi Needle Quilting Machine for Mattress Mat
Basic Info.
Model NO. | WT-400T |
Speed | High Speed |
Type | Multi Needle Quilting |
Computerized | Yes |
Non Shuttle | Yes |
Quilting Type | Looper |
Quilting Width | 94 Inch |
Qulting Thickness | <80mm |
Chain Stitch | Yes |
Motor | Servo |
Axis Speed | 1200rpm |
Transport Package | PVC Film, Plywood Box |
Specification | 5100X1500X2000(mm) |
Trademark | weitu |
Origin | China |
HS Code | 84522190 |
Production Capacity | 60 Sets |
Product Description
Hot sale high speed chain stitch Mattress computerized multi needle quilting machineProduct DescriptionQuilting machine, computer quilting machine, 400T quilting machine Features:
1, the latest design pneumatic feeding institutions, easy to install, fast, smooth;
2, integrated tilt-type body design, the overall appearance of generous, easy to operate, perfect quilted pattern;
3, the first infrared device broken device, non-contact, reliable performance;
4, the first domestic quilted independent pattern, the use of pneumatic thread trimming technology, thread cutting fast;
5, the latest design enhanced arms exercise mechanism, durable, no fuel, fast speed, small vibration;
6, different thickness of quilted fabric, the overall pressure plate can be easy to operate;
7, perfect safety protection device
8, a new generation of design control system, reliable performance, easy operation, high precision quilting;
9, CAD drawing methods can be enlarged, reduced, arbitrarily modified, convenient and quick;
10, a powerful combination of patterns (covering 360 degrees, 180 degrees pattern), can store more than 100,000 patterns
11, running state detection and prompts, the operation of the machine at a glance;
12, computer pattern automatic compensation function.
Upgrade innovative features introduced:
1, automatic adjustment of fabric thickness device can automatically adjust the pressure roller gap, flower is not easy to deformation, strong sense of three-dimensional;
2, upgraded shock absorber hopper, to solve the heavy fabric quilted back and forth in the process of shaking problems;
3, the new hopper solid balance system, reduce vibration and reduce noise, which will help improve the performance of the machine and stability;
4, a special professional cloth belt system, pattern stable, smooth fabric is not easy to wrinkle and scratch;
5, enhanced bed, four rail slider, reinforced mobile frame, high-speed machine work stable, small vibration;
6, luxury sponge frame.
Model | WT-400T |
Dimension(L*W*H) | 5100*1670*2050 |
Quilting width | 2450 |
Space between needle rows | 50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(6" ) |
Space between needles | 12.7mm |
X-axis movement distance | 410mm |
Thickness of quilting | ≤80MM(for all patterns) |
Stitch length | 3-8 |
Speed of operation | 60-300(m/hour) |
Model of needle | 24/180 23/160 22/140 21/130 |
Speed of main shift | 600-1200(PRM) |
power | 7KW |
Voltage | 380V/50HZ 220V /60HZ |
Machine Weight | 4500KG |
