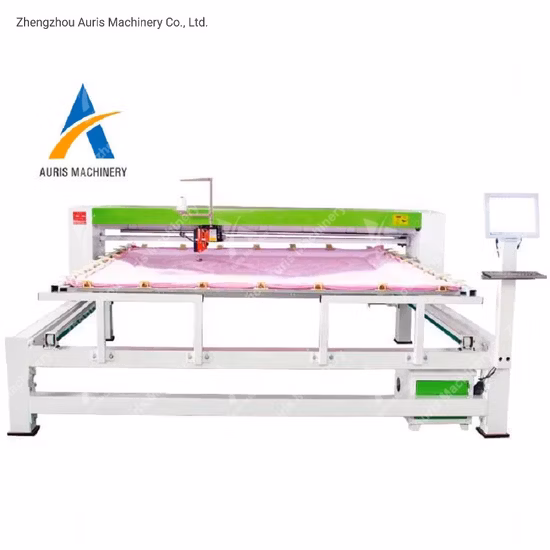

Long Arm Computerized High Speed Single Head Needle Bed Sofa Cover Quit Quilting Machine
Overview Product Description lLong Arm Computerized High Speed Single Head Needle Bed Sofa Cover Quit Quilting Machine T
Overview

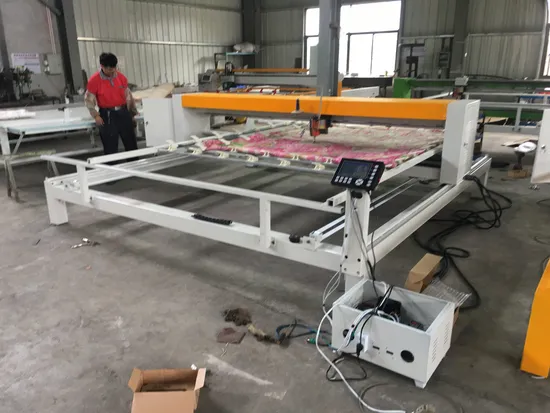

Detailed Photos2800R/PM 1.Head: High-speed direct drive head2.Motor: Spindle: Servo motor, X and Y axis: Stepper motor (all servo motors can be equipped)3.Lubrication method: automatic oiling4.The full LCD screen can support seven languages.5.Automatic thread trimming function 1300R/PM1. The square tube is 2.5mm thick, and the steel plate used for the upper frame is 3mm. The machine is stable and will not cause severe vibration and displacement. 2.Adopt brand computers, stepping motors, drivers, quilting heads, etc. in the industry.3. The high-quality steel shaft is an important guarantee for the smooth operation of the machine. Our steel shaft is chrome-plated, and the hardness of chromium is large, which makes the steel shaft not easy to deform and will not cause broken needles and wires.3000R/PM1: QB-ARM system (advanced technology can move the frame instantly) 2: 10-inch LCD touch screen. Support 7 languages.3: Pneumatic lift head. 4: Full servo motors (4 pcs).5: Adopt 6 high-precision linear slider guides. 6: High-speed direct-drive head. 7: High-speed direct-drive cam automatic trimming bottom seat. 8: Automatic timing refueling. 9: The rotary shuttle automatically removes dust regularly. 10: Automatically press the quilt frame when quilting. Lubrication method: automatic oiling
Workbench Standard size: 244*122cm.According to actual needs, it can be customized.A variety of patterns can be selected.With a pattern browsing function, can automatically recognize a variety of pattern formats, Computer LCD layout, simple and convenient operation. Spare parts1.Belts 2pcs 2.Bobbins 20pcs 3.Needle 50pcs 4.Clips 50pcs5.Sensors 1pcs 6.Pressor bowl 2pcs7.Bobbin cases 10pcs
Application Packaging & Shipping
FAQ
Basic Info.
Model NO. | A-HF-1 |
Type | Computerized Quilting Machine |
Suitable for | Cotton Quilt ,Mattress , |
Customize | Quilt Quilting Size |
Packing | Wooden Case |
Advantage | Long Performance |
Speed | 1300r/Pm |
Power | 2kw |
Pitch | 2-7mm |
Transport Package | Wooden Case |
Specification | 343*71*93cm |
Trademark | Auris |
Origin | Henan |
HS Code | 8452219000 |
Product Description
Product Description
lLong Arm Computerized High Speed Single Head Needle Bed Sofa Cover Quit Quilting Machine
This single needle quilting machine is Mainly used for cotton, chemical fiber, wool, camel hair, silk quilt, bedspread, sleeping bags, mattresses. 1.Quilting speed: here are 1300r/pm, 2200r/pm, 2400r/pm, 2800r/pm, 3000r/pm (suitable for simulation cloth)2.Quilting size: There are 2.4*2.6m, 2.6*2.8m, 2.8*3.0 m and so on.If you need other sizes, we can customize it for you.Product ParametersModel | 2.2*2.4M | 2.4*2.6M | 2.6*2.8M | 2.8*3.0 |
Power | 2kw, 220v, 50/60hz, single phase | |||
Max. Quilting size(m) | 2.2*2.4 | 2.4*2.6 | 2.6*2.8 | 2.8*3.0 |
Max. Needle Drop Size(m) | 2.0*2.2 | 2.2*2.4 | 2.4*2.6 | 2.6*2.8 |
Machine size(m) | 2.8*2.8*1.1 | 3.2*3.2*1.4 | 3.4*3.4*1.4 | 3.6*3.6*1.4 |
Weight(kg/set) | 700kg | 880kg | 950kg | 1100kg |
Workbench Standard size: 244*122cm.According to actual needs, it can be customized.A variety of patterns can be selected.With a pattern browsing function, can automatically recognize a variety of pattern formats, Computer LCD layout, simple and convenient operation. Spare parts1.Belts 2pcs 2.Bobbins 20pcs 3.Needle 50pcs 4.Clips 50pcs5.Sensors 1pcs 6.Pressor bowl 2pcs7.Bobbin cases 10pcs
